Description

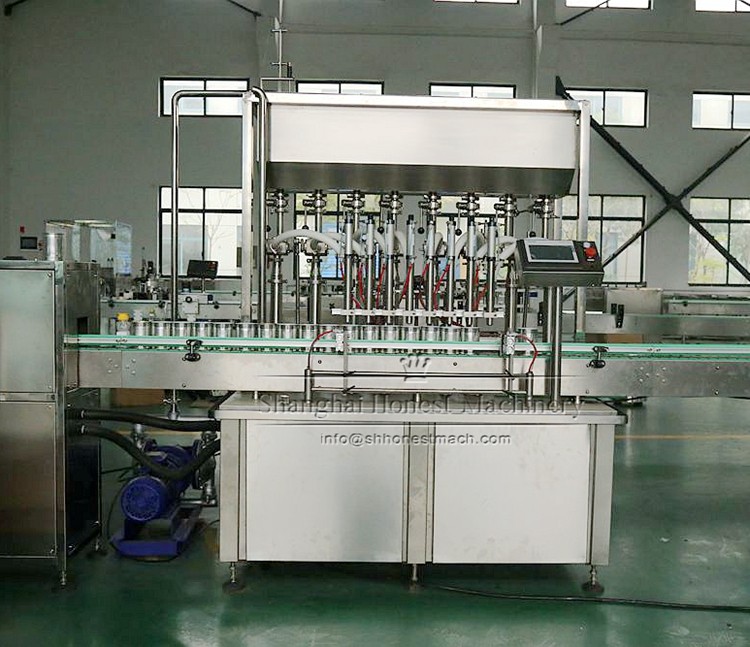

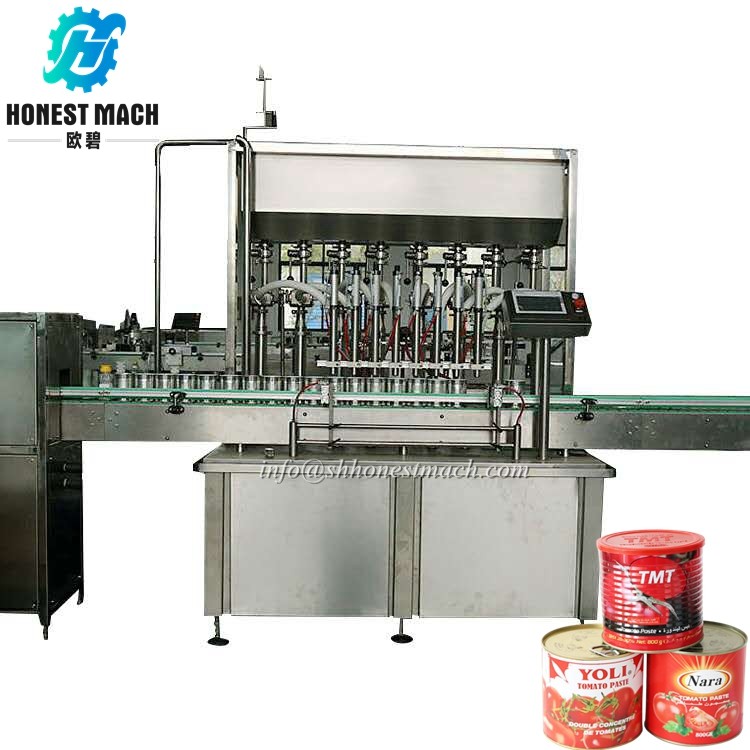

The tomato paste filler is an extremely flexible filler capable of filling accurately any viscous liquids. the piston filler is ideal for filling liquids, semi-solids and products with particulates. The tomato paste tin can filling machine is commonly used in the food service, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various filling projects.
|
Model |
tomato paste filler |
|
Filling volume |
50-5000ml |
|
Filling nozzles |
1-12 nozzles for your optional |
|
Filling type |
Piston pump with servo motor control |
|
Production capacity |
10-100 bottles per minute(for your optional) |
|
Filling accuracy |
±1%(according to product) |
|
Capping rate |
≥99% |
|
Power supply |
1 phase,220V 60/50Hz or 3 phase 380V |
|
Power |
3-5Kw |
|
Total dimension |
2450 * 1350 * 1950mm(Can be customized) |
1.Suitable for various low viscosity material,and various shaped containers
2.All connections adopt quick release joint, easy to dismantle and maintain, reduce the cost of the use and maintenance, save the time
3.With self-cleaning system that can do cleaning automaticlly
4.HMI control,easy-to-use intuitive HMI touch screen controls for your operator
5.No container/no filling,no container/no cappping
6.Piston pump filling with servo motor control that can easy adjust different volume automaticlly
7.Reduced labour costs
8.Easy to adjust for different tape and shaped container,10 minutes can change all the parts.
