Description

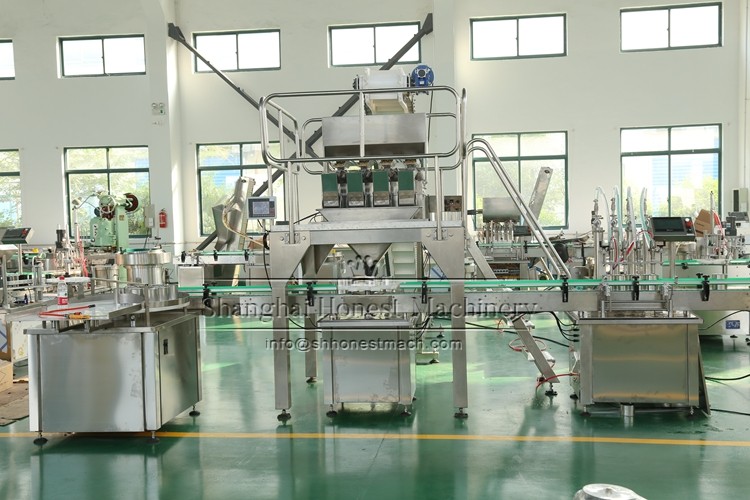

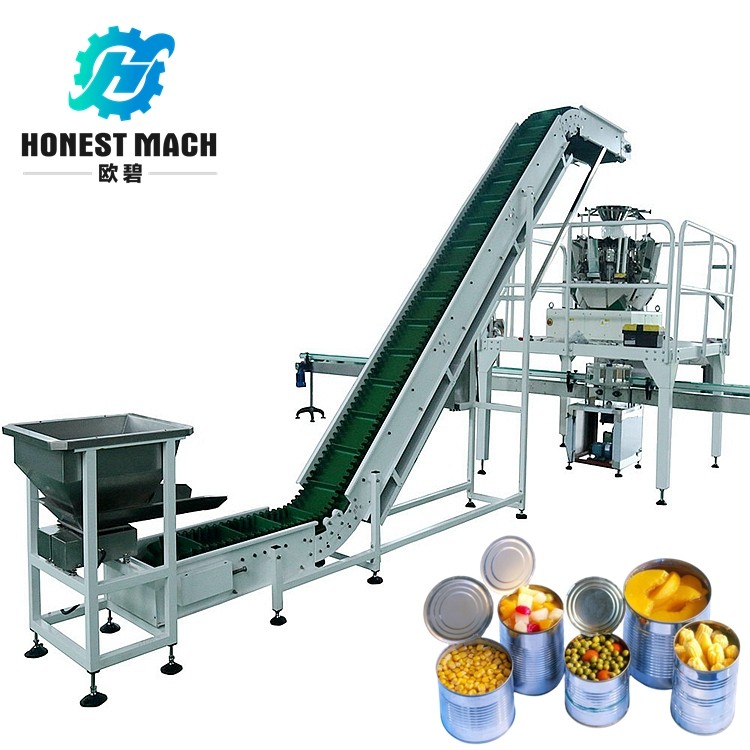

The granular filling machine for tin can is developed for precise and high-speed quantitative weighing packaging system.It is suitable for weighing material of grain,stick,
slice,globose,irregular shape such as candy,fruits, nut, pet food, roasted seeds,puffed food,frozen food,small hardware etc.
|
Model |
granular filling machine for tin can |
|
Weighing range |
50-2000g |
|
Filling heads |
2-16 heads weigher for your optional |
|
Weighing hopper volume |
1600g/2500g/5000g |
|
Production capacity |
10-100 bottles per minute(for your optional) |
|
Accuracy |
±0.1-1.5g(according to product) |
|
Capping rate |
≥99% |
|
Power supply |
1 phase,220V 60/50Hz or 3 phase 380V |
|
Power |
3-5Kw |
|
Total dimension |
2350 * 1150 * 2250mm(Can be customized) |

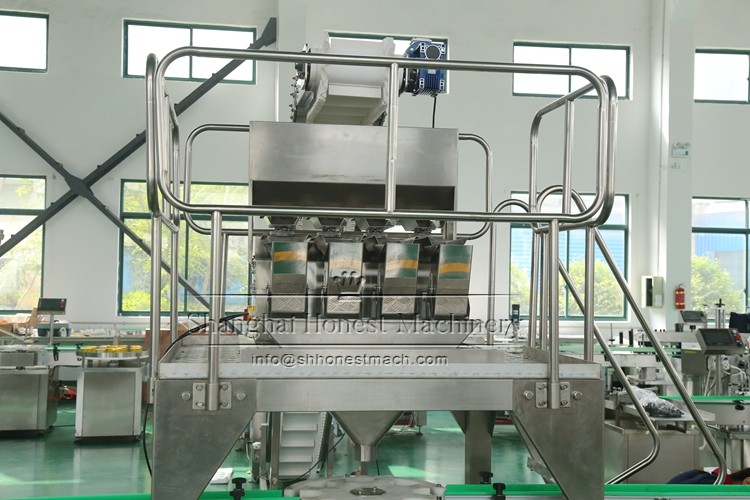

1.Multi-head combined weigher improves metering speed and accuracy
2.HMI control,easy-to-use intuitive HMI touch screen controls for your operator
3.Memory storage function of ten sets parameter for different product package chaging
4.No products auto pause function can improve weighing stability and accuracy
5.No container/no filling,no container/no cappping
6.Reduced labour costs
7.Easy adjust for different tape and shaped containers
