Description
The essential oil bottle filler is designed for filling and capping of plastic and glass containers such as diagnostic,pharmaceutical, food and similar containers and specialized for the CBD and Essential Oil industries.

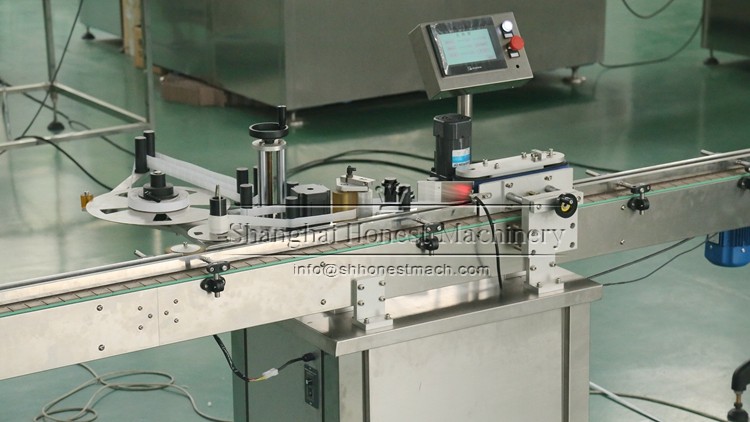

The loading turn table transfers the empty bottles to the conveyor where they are automatically indexed and filled. the filled bottles are indexed to the capping station where the single head chuck capper torques the hand placed caps and sealing bottle to the labeling and shrinking machine to wrapping the cap or full bottle for your optional
|
Model |
essential oil bottle filler |
|
Filling volume |
5-500ml |
|
Filling nozzles |
1-4 nozzles for your optional |
|
Filling type |
Peristaltic pump,Piston pump and Ceramic pump for your optional |
|
Production capacity |
10-80 bottles per minute |
|
Filling accuracy |
±0.5%(according to product) |
|
Capping rate |
≥99.5% |
|
Power supply |
1 phase,220V 60/50Hz or 3 phase 380V |
|
Power |
3-5Kw |
|
Total dimension |
2100 * 1050 * 1850mm(Can be customized) |
1.GMP compliant stainless steel enclosure for easy cleaning and durability
2.3 minutes change for different size bottle
3.3 minutes do cleaning and change for different flavor products
4.HMI control,simple and easy to operate
5.No container/no fill,no container/no cap,no cap/no torque
6.Heavy duty 304SS tig welded frame
7.Easy work for dropper,sprayer bottle and plastic bottle at same machine.
